Polycarbonate Cryoboxes 2D – CLEARLine® Accessories

Polycarbonate boxes for the refrigerated storage of CryoGen^® Tubes.

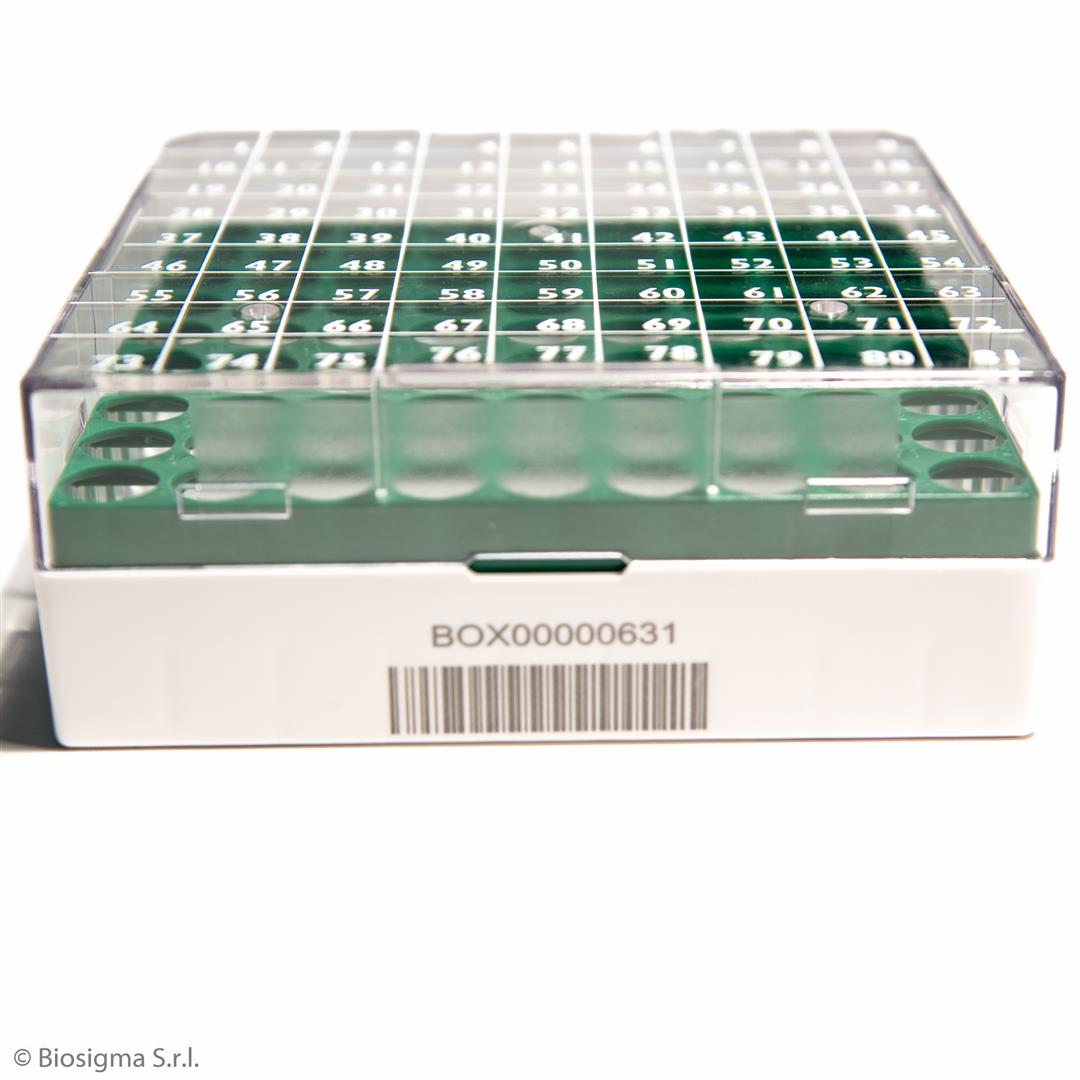

Laser engraved “Code 128” on the rack side with human reading decoding, readable with the most common barcode readers.

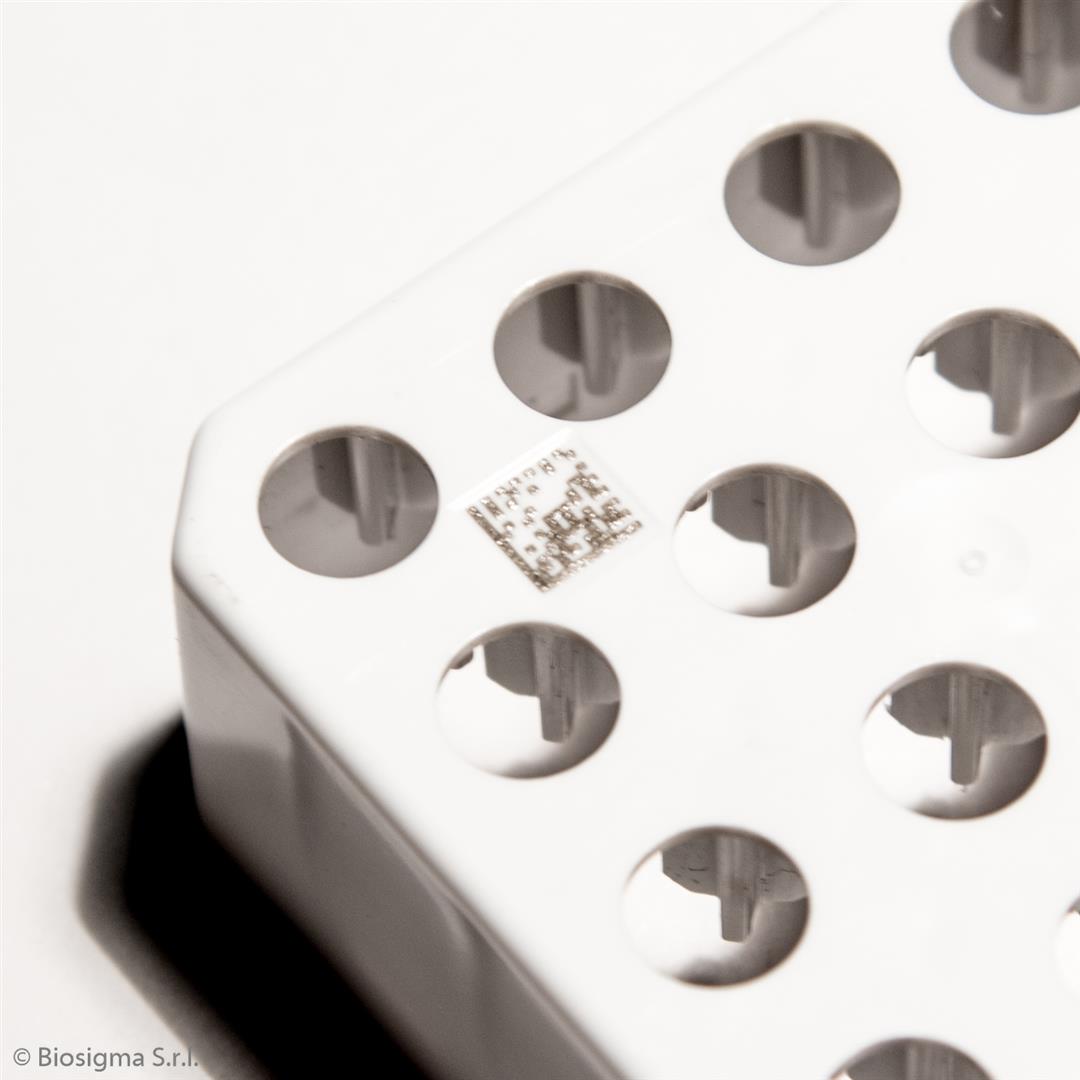

Laser engraved “2D Datamatrix code” on the box bottom to determine the orientation of the rack on the scanner bed

Suitable for automatic storage system

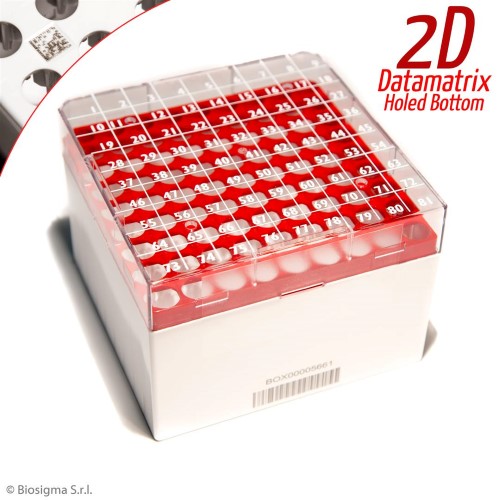

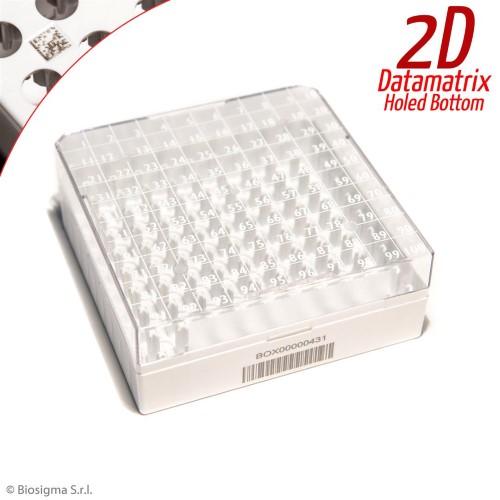

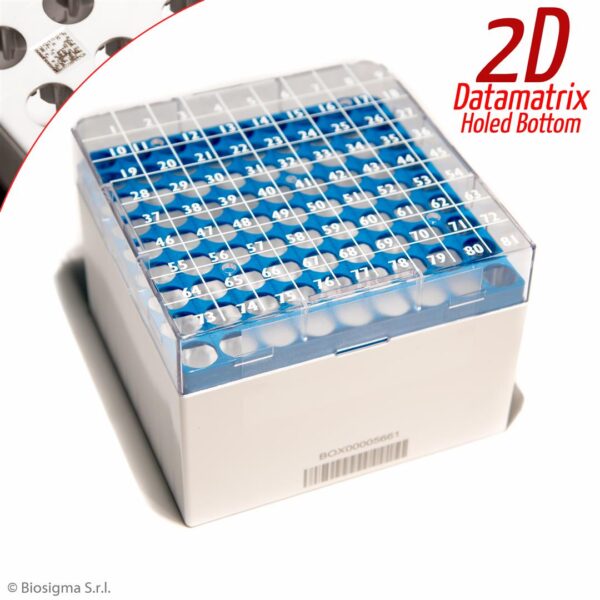

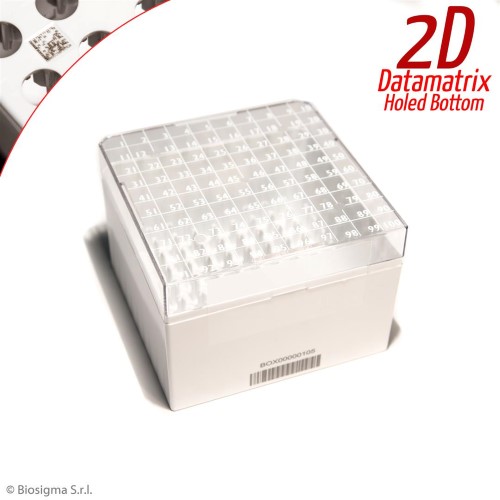

4 versions available: 81 places (9×9) low & high, 100 places (10×10) low & high

White bottom

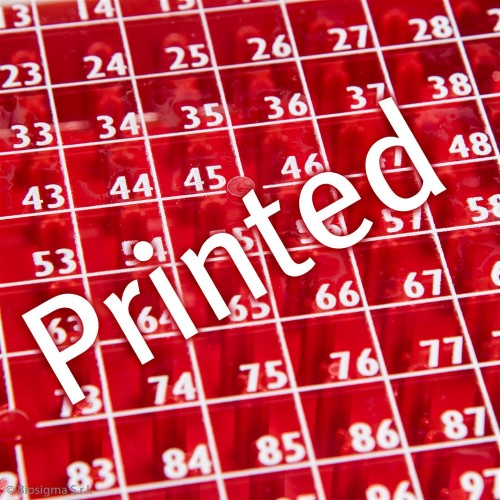

Numbered lid for an easy tubes positioning

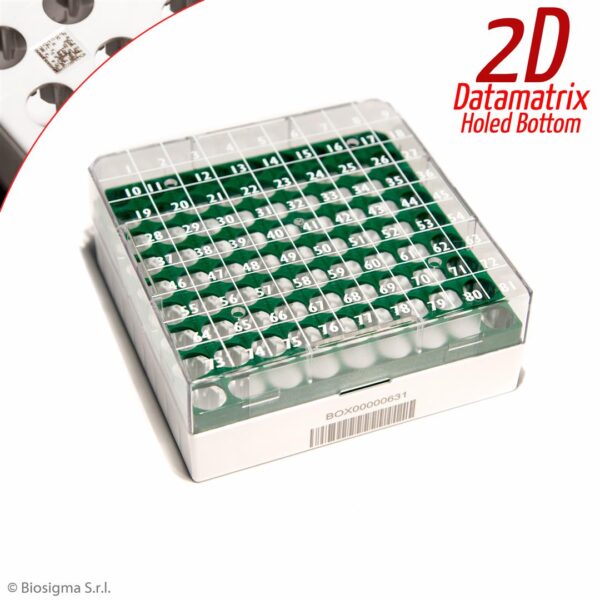

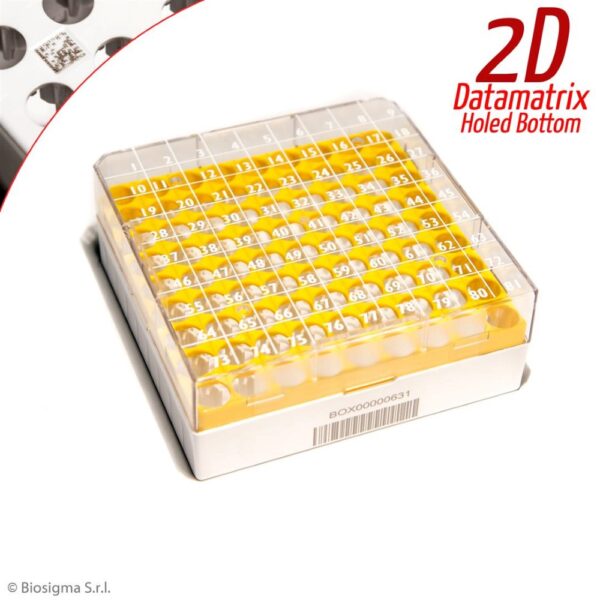

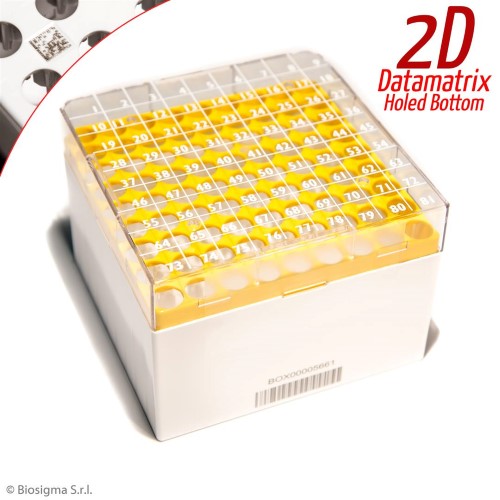

Four different colours of grids for better colour-coding: Blue, Yellow, Red and Green.

A special join system allows the closure of numbers always aligned in all versions

Double cut angle for a proper insertion and interlocking of grid and lid

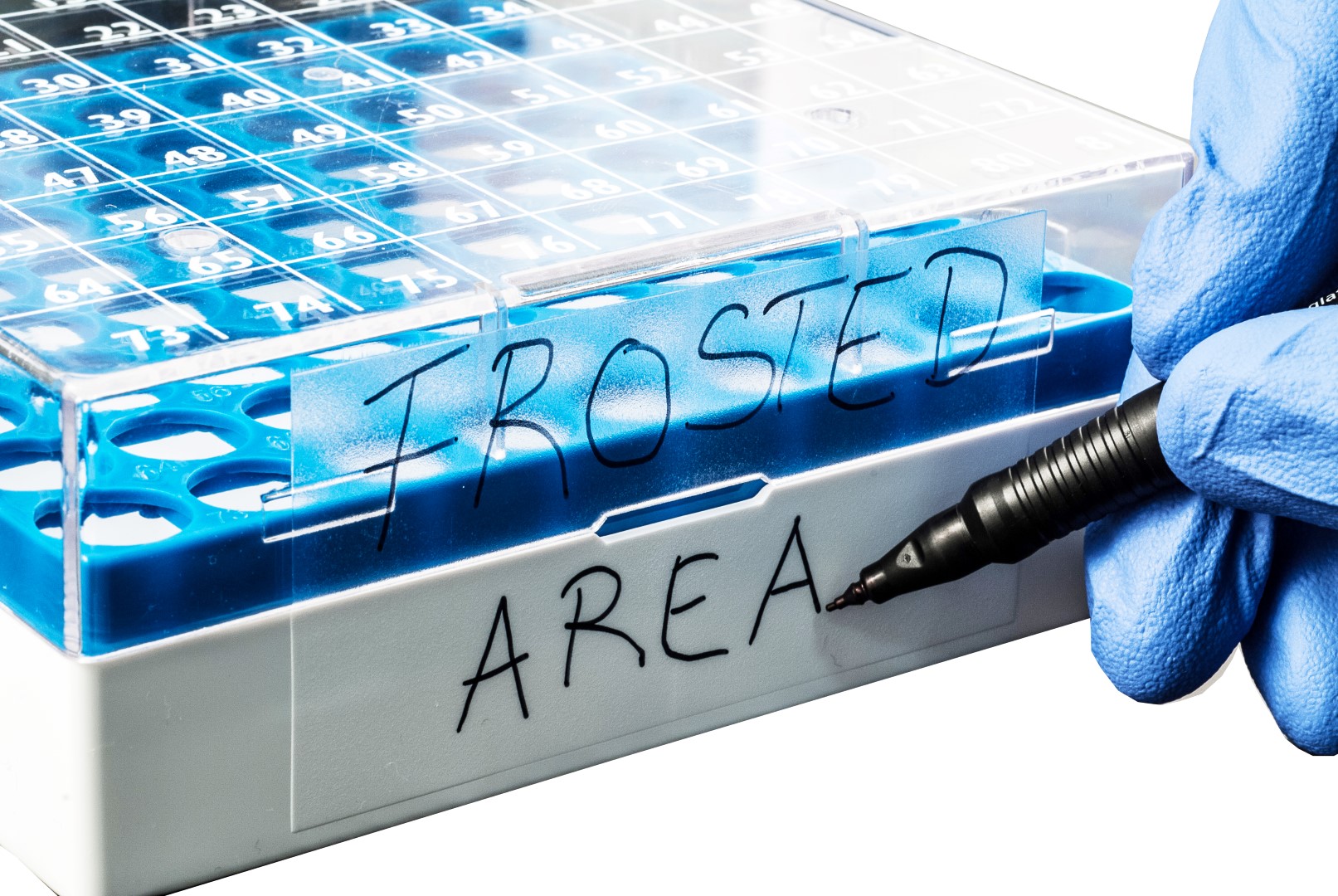

Writing area is present on the cover and on the bottom for an easy identification of the storage box

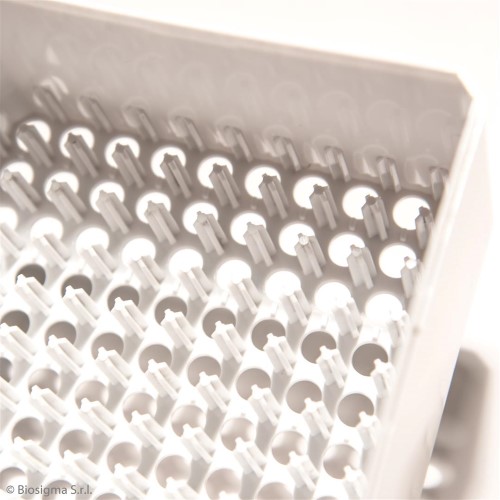

Locking system: 2D CryoGen^® Tubes will securely lock in each well and will not turn. Easy screwing and unscrewing by one hand.

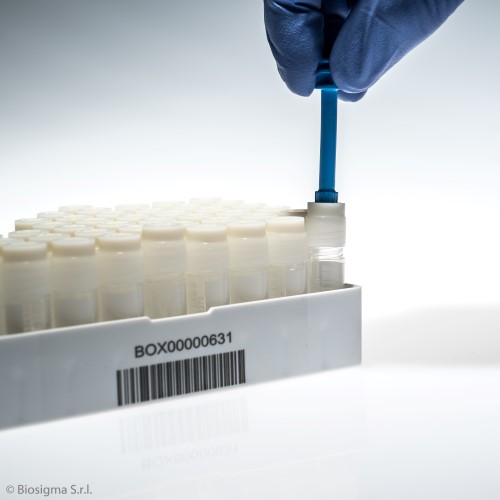

Vial Picker: Removal of vials facilitated by a vial picker, suitable for both internal and external Cryogen Tubes screw cap, supplied with each pack of storage boxes

• Break-resistant, durable polycarbonate
• To be used at temperatures between – 196 °C and +121°C
• Autoclavable at +121°C for 20 minutes
• Laser engraved “Code 128” on the rack side

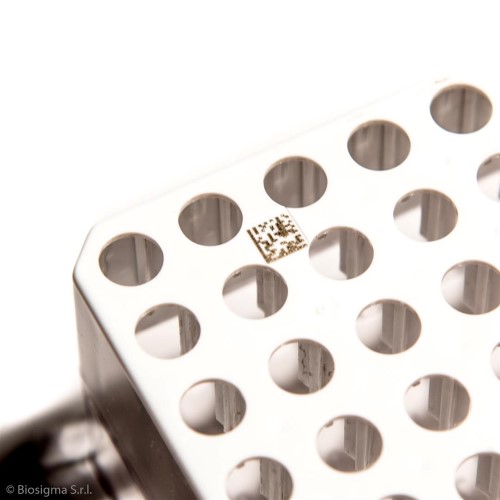

• 2D datamatrix code on the box bottom for automatic identification of the box and of its positioning
• Numbered lid and bottom for an easy tubes positioning
• Four different colours of grids for better colour-coding: Blue, Yellow, Red and Green.
• Drain holes under the base

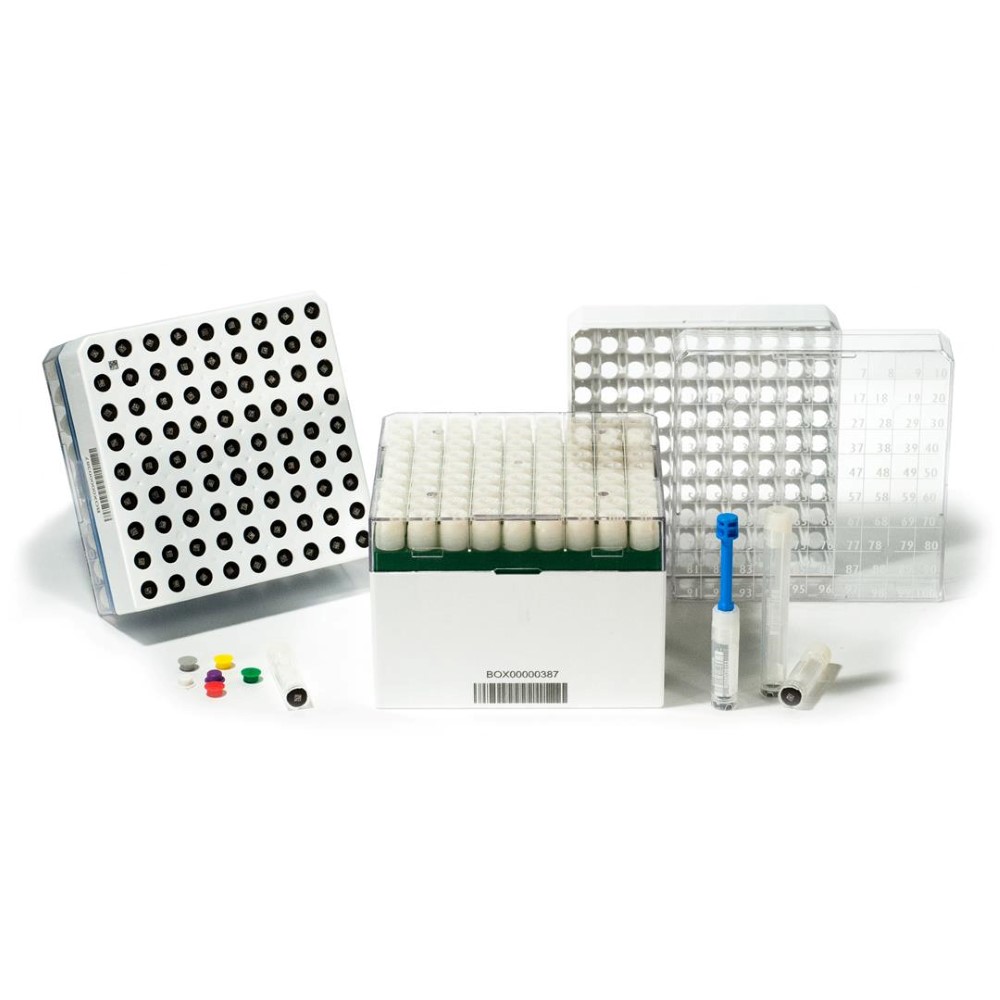

• Possibility to disassemble all the parts for an easy cleaning
• Suitable to stainless steel vertical cryobox racks
• CE-marked

• Biobanking and biorepository
• Cryogenic storage
• For short- or long-term storage at ultra-low temperature

At what kind of temperature they can be used?

They withstands temperatures range of -196ºC to +121ºC.

Can they be used in the gas phase of liquid nitrogen?

Yes, we recommend the storage in the gas phase above the nitrogen (-178 to –150ºC) to be absolutely safe and avoid any kind of risk or biohazard release.

Do they have dimensions suitable for the use with stainless steel cryogenic box storage rack?

Yes, Biosigma CryoGen® Box fits most of the existing stainless steel cryogenic box storage rack

Which type of scanner can be used to read "Code 128" on Polycarbonate Cryoboxes 1D/2D?

"Code 128" barcode can be read by the most common scanners that you can find in the market.

With what kind of cryotubes they are compatible?

They are compatible with cryogenic tubes ranging from 0.5ml to 5.0ml.
